Big Data and Cloud Platforms (Module 2)

Cluster migration - Based on a true story​

Matteo Francia
DISI — University of Bologna
m.francia@unibo.it

Migration

Evaluating the costs for a cloud/on-premises data platform

  • Fill in this table
  • Real-world case study
Cost On-premises On cloud
Hardware ? ?
Software ? ?

Case study

Business intelligence group

Migration

Data platform for Agritech

HW + SW stack

Migration

Hardware

Hardware configuration
lshw -short -C cpu
lshw -short -C memory
lshw -short -C disk
  • 8 CPUs (144 total)
    • Intel(R) Core(TM) i7-8700 CPU @ 3.20GHz
  • 32GB RAM (576GB total)
    • 2 x 16GB DIMM DDR4 2666 MHz
  • 12TB HDD Disk (216TB total)
    • 3 x 4TB ST4000DM004-2CV1

Software

  • “Classic” Hadoop stack

Migration

Hardware cost: ?

\(SOL_{on-prem}\) On-premises On cloud
Hardware ? ?
Software ? ?

On-premises

Hardware cost (up to Mar 05, 2021):

  • 1767€ x 18 = 31806€
  • Amortization over 3 years (i.e., 10602€/year)
\(SOL_{on-prem}\) On-premises On cloud
Hardware 10602€/year ?
Software ? ?

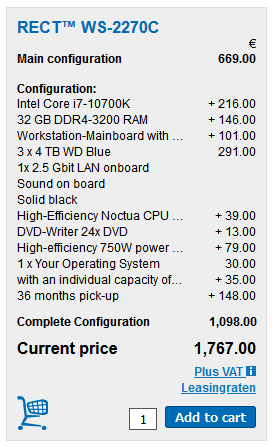

Hardware configuration

https://www.rect.coreto-europe.com/en (Accessed 2021-08-01)

On-premises

Software cost: ?

\(SOL_{on-prem}\) On-premises On cloud
Hardware 10602€/year ?
Software ? ?

On-premises

Software cost (up to 2020): 0€

  • Free Cloudera Management System
  • No software licensing (for research purposes)
\(SOL_{on-prem}\) On-premises On cloud
Hardware 10602€/year ?
Software 0€ ?

On-premises

Software cost (up to Mar 05, 2021): 10000€/year x 18 = 180000€/year

“Houston we’ve had a problem!”

  • We cannot update/extend the cluster anymore
  • What about migrating to the cloud? (we only consider AWS)
\(SOL_{on-prem}\) On-premises On cloud
Hardware 10602€/year ?
Software 180000€/year ?

Migration

Moving a Hadoop cluster to the cloud (we only consider AWS)

How do we start?

  • We have already defined the hardware and the software stack
  • Start with coarse tuning, identify the dominating costs first
    • Is it computing, storage, or processing?
  • Identify a suitable budget, implement, and refine later
    • Wrong refinements can do a lot of damage

On cloud v1

Migrating the cluster as-is: ?

  • Hint: add 18 EC2 instances satisfying the hardware requirements
\(SOL_{cloud 1}\) On-premises On cloud
Hardware 10602€/year ?
Software 180000€/year ?

On cloud v1

\(SOL_{cloud 1}\) migrating the cluster as-is: 13500$/month = 162000$/year

  • 18 EC2 instances (t4g.2xlarge) with 12TB EBS storage each machine

Prices change over the year

Still, we have no software configuration

\(SOL_{cloud 1}\) On-premises On cloud
Hardware 10602€/year 162000$/year
Software 180000€/year ?

Migration

Pay attention to the region

  • Different regions, different prices
  • Different regions, different services
  • Remember the GDPR and data locality

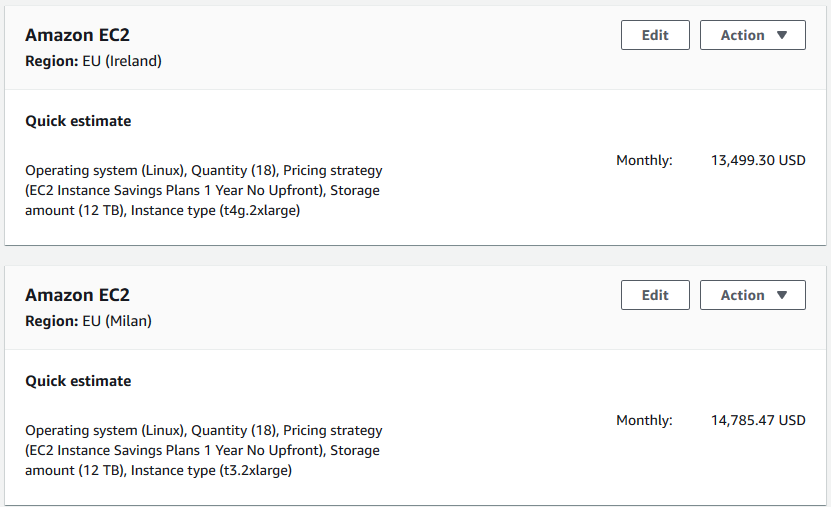

Ireland vs Milan

Migration

It makes no sense to move the cluster as-is

  • More machines ensure better (on-prem) scalability but higher costs

How do we proceed with the migration?

  • We need minimum software requirements
  • Try to achieve the smallest migration impact
    • Find the most similar cloud-based solution to a Hadoop cluster
    • Rethink applications (later) when you got the know-how
  • Identify a suitable budget and refine it later
    • Wrong refinements can do a lot of damage

Migration

HDFS

  • How much durability do we need?
    • HP0: three replicas (we stick to this)
    • HP1: decrease replicas for cold data
    • HP2: move cold data to the glacier or delete id
    • …

HBase has marginal effects on the pricing (100GB << 50TB)

  • For simplicity, we can omit it

Overall: 50TB storage/year

Migration

Processing takes place each time that ESA provides a satellite image

  • Some days no images are available
  • Some days up to 10 images are available
  • Spark jobs are always executed with the same parameters

Image processing

  • 4 machines, 2 cores, 10GB RAM at least

Weather processing is negligible

On cloud v2

\(SOL_{cloud 2}\): compare 4 machines on-premises vs on cloud

  • Assuming 1 Executor = 1 Machine

On-premises

  • 4 machines: 10602€/year / 18 machines x 4 machines = 2356€/year
  • Cloudera requires at least 10 nodes: 100000€/year

AWS

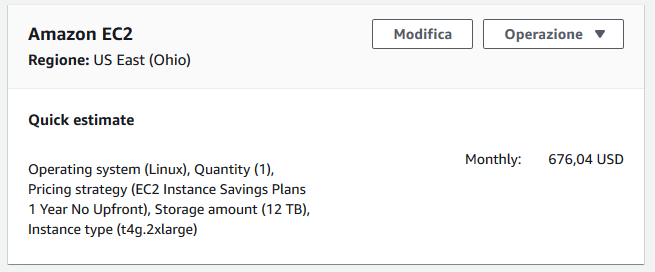

  • 4 EC2 instances: 162000$/year / 18 machines x 4 machines = 36000$/year
  • Problems
    • Machines are up and running even when no computation is necessary
      • This is necessary to persist data
    • Still, no software stack
\(SOL_{cloud 2}\) On-premises On cloud
Hardware 2356€/year 36000$/year
Software 100000€/year ?

Which is the major cost?

On cloud v2

Total cost of EC2

Cost breakdown

Migration

HDFS on EC2

  • Heavy price
  • Machine must always be on to guarantee data persistence
  • Data locality

S3

  • Much cheaper
  • Does not require machines for data storage
  • Data locality is lost

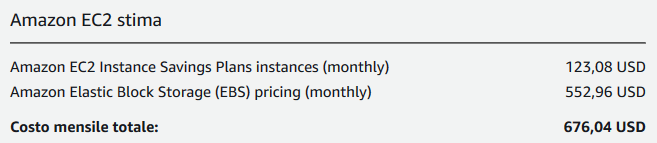

Total cost of EC2

Cost breakdown

Migration

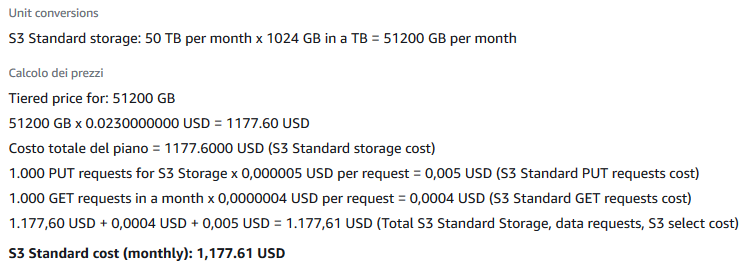

S3 standard

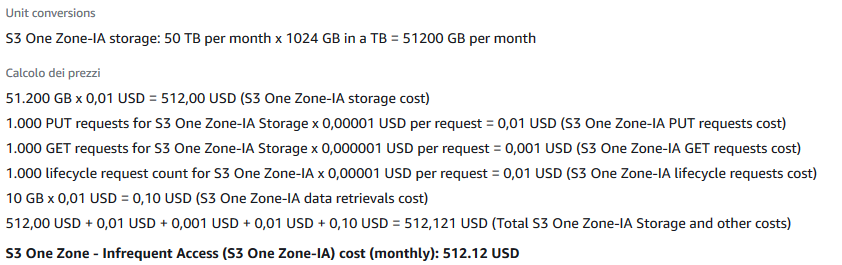

S3 Infrequent Access

Migration

Migrating cluster to EMR: ?

Given the software requirements, we need

  • 1 x Master node (to manage the cluster)
  • 1 x Core node (with HDFS/EBS)
  • 4 x Task nodes (to compute)

On-premises On cloud
Hardware 2356€/year ?
Software 100000€/year ?

On cloud v3

Migrating cluster to EMR: 14710€/year

  • S3 Infrequent Access storage (50 TB per month): 640€
  • 1 x Master EMR nodes, EC2 (m4.xlarge), Utilization (75 h/month): 4.5€
    • 75 h/month = 15min/task x 10task/day x 30day/month / 60min/hour
  • 1 x Core EMR nodes, EC2 (m4.xlarge), Utilization (75 h/month): 4.5€
  • 4 x Task EMR nodes, EC2 (m4.4xlarge), Utilization (75 h/month): 72€
  • 4 x EC2 on demand (task node): 174.83€
    • Storage amount (30 GB)
    • Workload (Daily, Duration of peak: 0 Hr 15 Min)
    • Instance type (m4.xlarge)
  • 2 x EC2 on demand (master and core nodes): 330€
    • Storage amount (30 GB)
    • Instance type (m4.xlarge)
\(SOL_{cloud 3}\) On-premises On cloud
Hardware 2356€/year 14710€/year
Software 100000€/year ?

On cloud v4

Migrating cluster to EMR: 13445€/year

  • S3 Infrequent Access storage (50 TB per month): 640€
  • 1 x Master EMR nodes, EC2 (m4.xlarge), Utilization (75 h/month): 4.5€
    • 75 h/month = 15min/task x 10task/day x 30day/month / 60min/hour
  • 1 x Core EMR nodes, EC2 (m4.xlarge), Utilization (75 h/month): 4.5€
  • 4 x Task EMR nodes, EC2 (m4.4xlarge), Utilization (75 h/month): 72€
  • 4 x EC2 spot (task node): 69.55€
    • Storage amount (30 GB)
    • Workload (Daily, Duration of peak: 0 Hr 15 Min)
    • Instance type (m4.xlarge)
  • 2 x EC2 on demand (master and core nodes): 330€
    • Storage amount (30 GB)
    • Instance type (m4.xlarge)
\(SOL_{cloud 4}\) On-premises On cloud
Hardware 2356€/year 13445€/year
Software 100000€/year ?

Summing up

Machine uptime Storage Software Feasible? Cost per year
Constant EC2 Manual YES: but high storage cost ~36K€
Constant EC2 EMR YES: but high storage cost ~37K€
Constant S3 Manual YES: but still manual provisioning ~17K€
Constant S3 EMR YES ~18K€
Pay-per-use EC2 Manual NO: pay-per-use + EC2 = Data unpersisted -
Pay-per-use EC2 EMR NO: pay-per-use + EC2 = Data unpersisted -
Pay-per-use S3 Manual ISH: repetitive manual provisioning -
Pay-per-use S3 EMR YES ~14K€

Summing up

We estimated the cluster costs

  • On-premises solution with 18 machines: no-go
  • Cloud solution with 18 EC2 instances: no go

We reduced the solution based on software requirements

  • On-premises solution with 4 machines: no-go
  • Cloud solution with 4 EC2 instances: no go, we miss the software configuration
  • We moved the cluster to AWS EMR + spot instances + S3 storage

Can we do better?

  • Pick ad-hoc cloud services (AWS Lambda e AWS Batch)
  • … to re-think the applications (food for thoughts)
